How to Download HACCP Data

Before you begin

Make sure:

▪    The oven is on, but not in a cooking mode.

▪    You will need a USB drive.

Background

HACCP data provides automated record keeping, set-point validation, recipes used, dates and times. The data is stored until the information is downloaded. Once downloaded, the information is removed from the oven’s memory. Best practice would be to download the information every 30 days to a USB drive. The file format is plain text file (.csv). The file can be viewed in Microsoft® Excel.

Procedure

To download HACCP data, do the following.

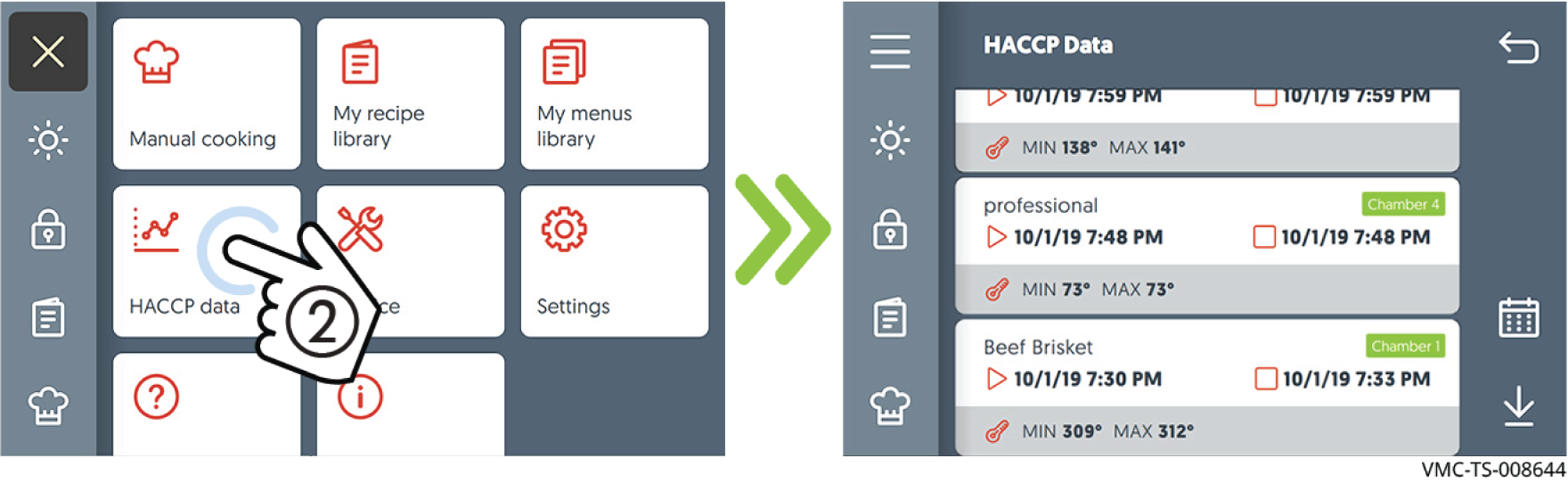

1. Touch the menu icon ①. The menu screen displays.



2. Touch the HACCP data icon ②. The HACCP data screen displays.



3. Plug the USB drive ③ into the port.

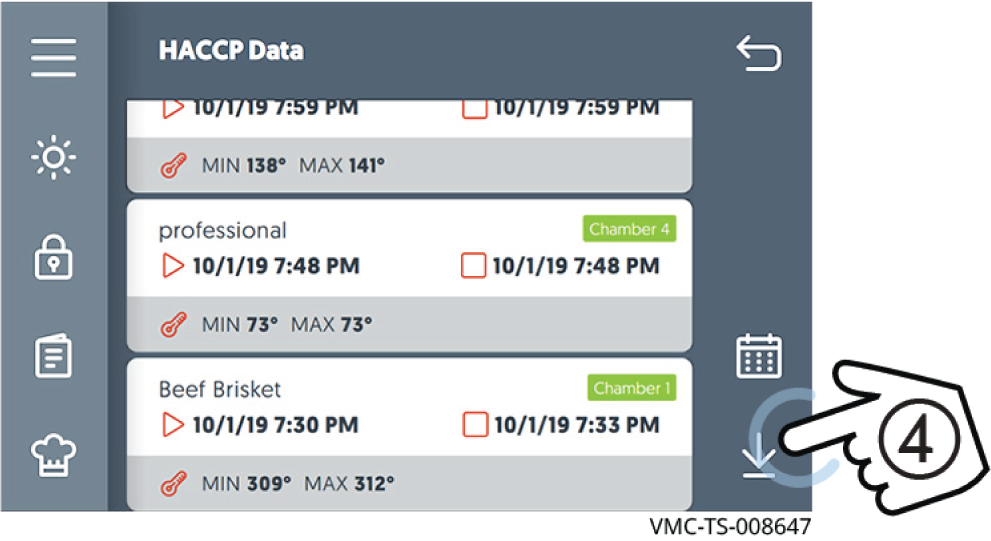

4. Touch the download icon ④.



Loading the data

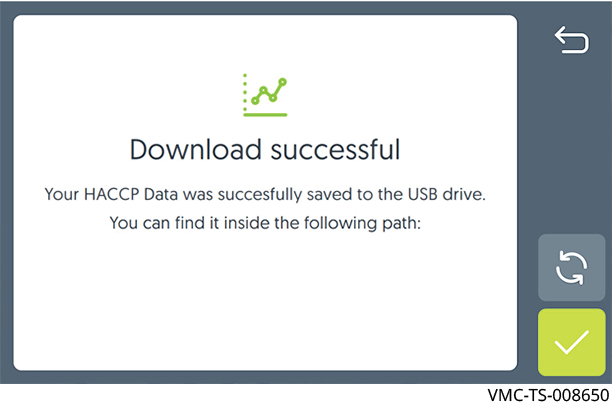

The oven downloads the data onto the USB drive. When the process is complete, the download successful screen displays. Touch the check mark to return to the menu screen. Remove the USB drive.

Result

The HACCP data has now been downloaded.
